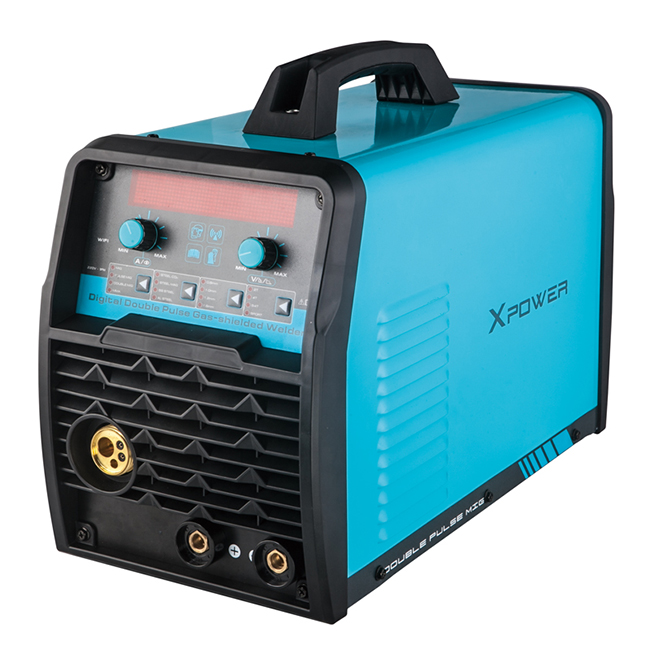

| ITEM | MIG-200WDP |
| Input Power Voltage V | AC230V |
| Input Power Frequency Hz | 50/60 |
| Rated Input Capacity KVA | 9.4 |
| Output Current Range(MMA) A | 20-180 |
| Output Current Range(MIG) A | 60-200 |
| Wire Feed Speed M/min | 1.5-16 |
| Load Voltage V | 69 |
| Rated Duty Cycle % (200A) | 35 |
| Rated Duty Cycle % (153A) | 60 |
| Rated Duty Cycle % (118A) | 100 |
| Electrode & Wire Diameter (MM) | 1.5-4.0 0.6-1.0 |
| Efficiency % | 85 |
| Protection Grade | IP22S |
| Insulation Class | F |
| Dimensions mm | 500*215*340 |
| Weight KG | 13.5 |
| ITEM | MIG-200WDP |
| Input Power Voltage V | AC230V |
| Input Power Frequency Hz | 50/60 |
| Rated Input Capacity KVA | 9.4 |
| Output Current Range(MMA) A | 20-180 |
| Output Current Range(MIG) A | 60-200 |
| Wire Feed Speed M/min | 1.5-16 |
| Load Voltage V | 69 |
| Rated Duty Cycle % (200A) | 35 |
| Rated Duty Cycle % (153A) | 60 |
| Rated Duty Cycle % (118A) | 100 |
| Electrode & Wire Diameter (MM) | 1.5-4.0 0.6-1.0 |
| Efficiency % | 85 |
| Protection Grade | IP22S |
| Insulation Class | F |
| Dimensions mm | 500*215*340 |
| Weight KG | 13.5 |
